TG-1660 High Precision Waveform Coating Thickness Gauge Optional Color LCD Auto Shipbuilding Automotive Metal Coating Thickness Detector

  • 1
  • 2

Zero Calibration(um) : ±(3%H+1)

Packaging Details : Outer carton packaging

Certification : CE

Temperature : 0 ℃ -- 40 ℃

Delivery Time : 7-10 working days after receipt of your payment

F Testing Range(um) : 0-2000

MOQ : 1 SET

Price : USD138-USD156/SET

Payment Terms : T/T,Western Union,Paypal

N Testing Range(um) : 0-1500 0-40 (chromium plating on copper）

Place of Origin : China

Model Number : TG-1660

Supply Ability : 10 Sets/Month

Min. Resolution)(um) : 0.1

Brand Name : HUATEC

Humidity : 20%RH -- 90%RH

Contact Now

TG-1660 High Precision Waveform Coating Thickness Gauge Optional Color LCD Auto Shipbuilding Automotive Metal Coating Thickness Detector

Principle

Coating Thickness Gauges TG-1660 with ferrous probe applies magnetic induction method to measure the thickness of non-magnetic coating on ferromagnetic material; with eddy current method to measure the thickness of non-conductive coating on conductive metal
Application

This gauge can be used widely in machinery, automobile, shipbuilding, petroleum, chemical, electroplating, spraying plastics, enamel, plastics and so on.

Specification

Probe Type F N
Working Theory Magnetic Eddy Current
Testing Range(um) 0-2000

0-1500

0-40

(chromium plating

on copper)
Min. Resolution)(um) 0.1 0.1

Display
Resolution

 Zero Calibration(um) ±(3%H+1) ±(3%H+1)
2 points calibration(um) ±｛(1-3)%H+1｝ ±｛(1-3)%H+1｝

Testing
Condition

 Min. Radius of curvature(mm) Convex 1.5 Convex 3
Diameter Of minimum area(mm) ∅7 ∅5
Critical thickness of base(mm) 0.5 0.3
Operation condition Temperature 0 ℃ -- 40 ℃
Humidity 20%RH -- 90%RH
Magnetic Environment Non Strong magnetic field
Power AAA battery X 3
Size 114mm*58mm*29mm
Weight 70g(without battery)

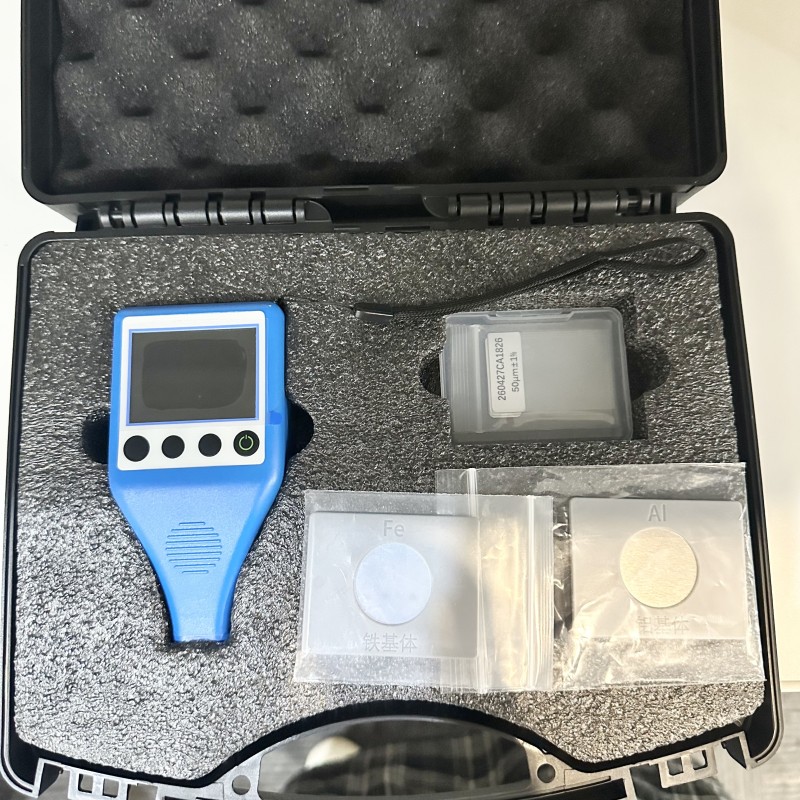

Standard accessories

Main unit TG-1660

Ferrous base set, Aluminum base set

Film 1 set 5pcs

English manual

Calibration certificate

Carrying case

Option function

Color LCD

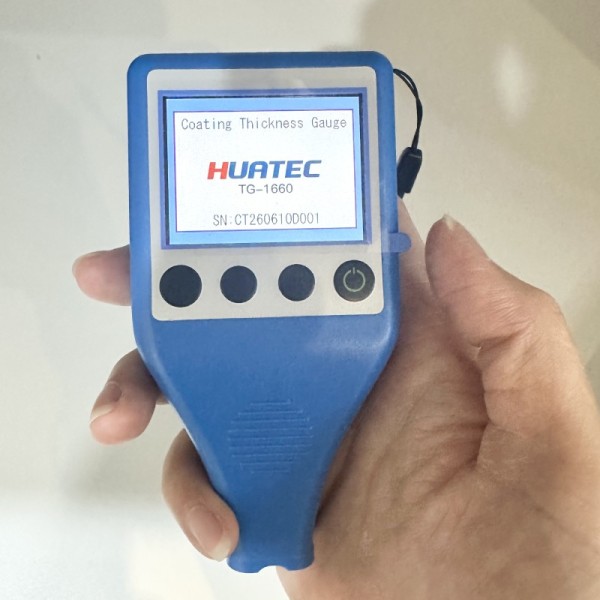

TG-1660 High Precision Waveform Coating Thickness Gauge Optional Color LCD Auto Shipbuilding Automotive Metal Coating Thickness Detector

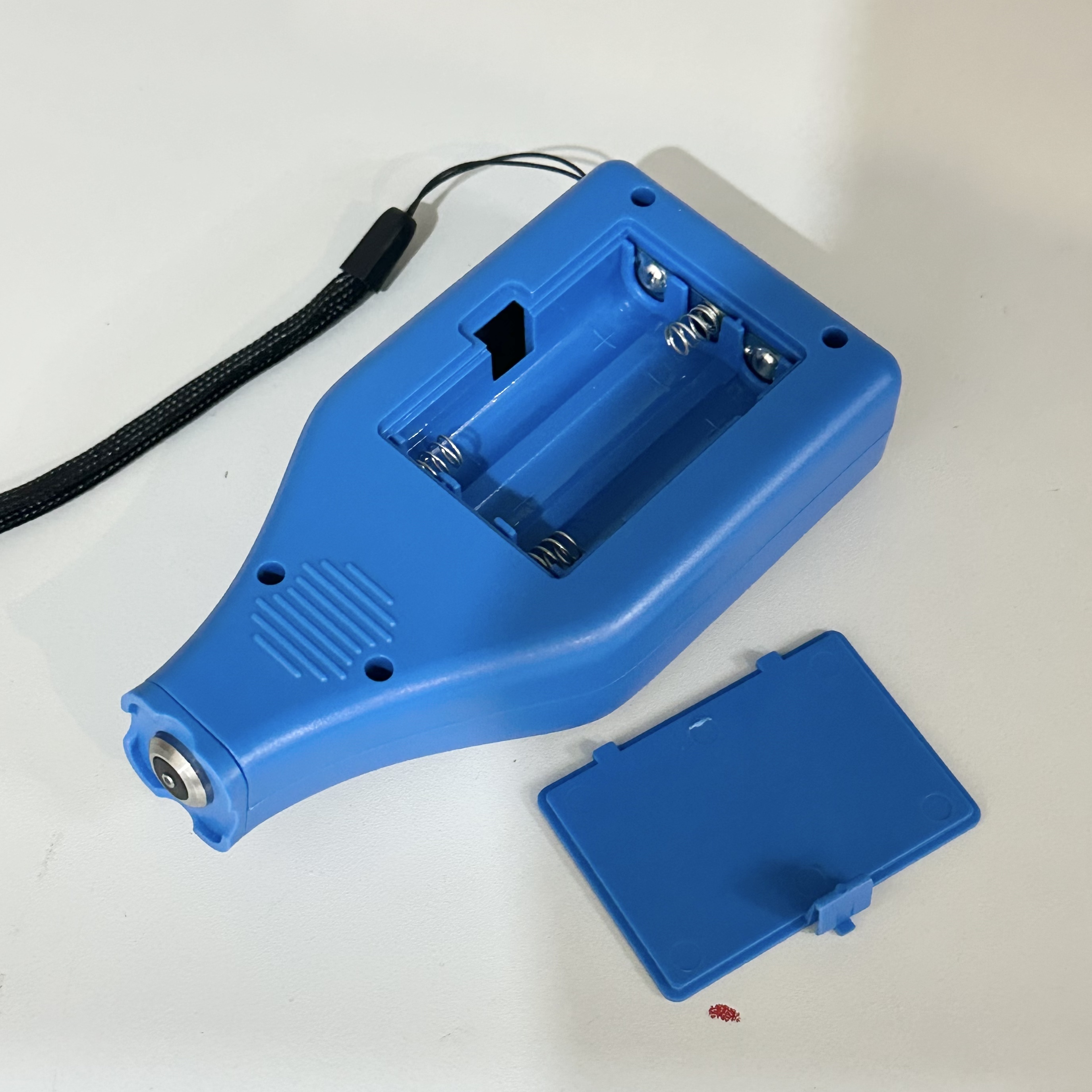

TG-1660 High Precision Waveform Coating Thickness Gauge Optional Color LCD Auto Shipbuilding Automotive Metal Coating Thickness Detector

TG-1660 High Precision Waveform Coating Thickness Gauge Optional Color LCD Auto Shipbuilding Automotive Metal Coating Thickness Detector

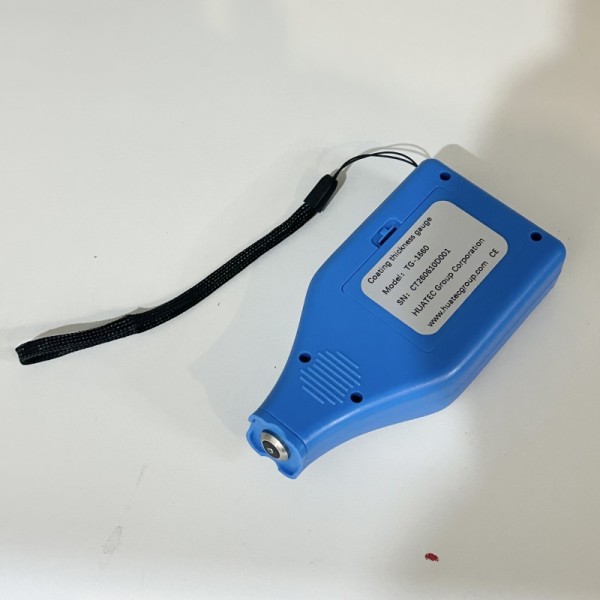

TG-1660 High Precision Waveform Coating Thickness Gauge Optional Color LCD Auto Shipbuilding Automotive Metal Coating Thickness Detector
