DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)

Name: DR Panel and NonDestructive Testing Lightweight Wireless Detector Based on Amorphous SiliconaSi
Brand: HUATEC
Price: 1 USD

Buy cheap DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si) product

Model Number : H4343DA

MOQ : 1pc

Product name : DR panel

Delivery Time : 7-10 days after payment

Active Area : 430 x 430 mm

Supply Ability : 50 pcs per month

Certification : ISO,CE

Packaging Details : in carton box

Adapter In : AC 100-240V,50-60Hz

Brand Name : HUATEC

Place of Origin : China

Model : H4343DA

Contact Now

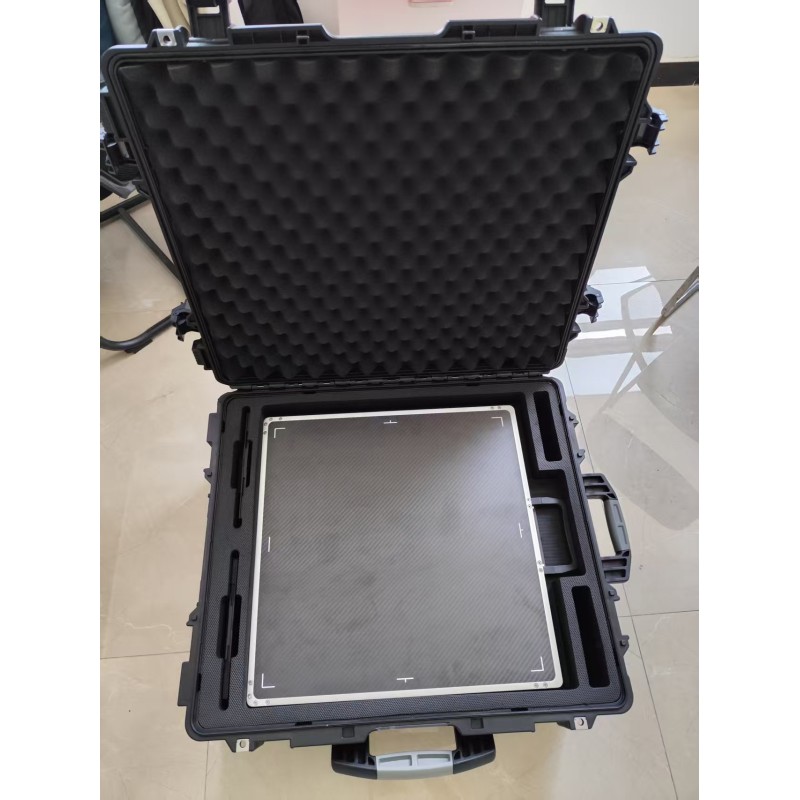

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)

Sensor

Receptor Type	a-Si
Scintillator	Gos / CsI:TI
Active Area	430 x 430 mm
Resolution	3072x 3072
Pixel Pitch	139 μm

Power Supply & Battery

Adapter In	AC 100-240V,50-60Hz
Adapter Out	DC 24V,2.7A
Power Dissipation	<20 W

Image Quality

Limiting Resolution	3.5 LP/mm
Energy Range	40-160 KV
Dynamic Range	≥84 dB
Sensitivity	≥0.54 LSB/nGy
Ghos	<1% 1st frame
DQE	42% @(1 LP/mm) 28% @(2 LP/mm)
MTF	68% @(1 LP/mm) 38% @(2 LP/mm) 20% @(3 LP/mm)

Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet

Frame rate 1x1 4fps/2x2 15fps/3x3 25fps

Exposure Control Free Run/SYNC Acquire

Mechanical
Dimension 460 × 460 × 14.8 mm
Weight 3.8kg

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
