SRT-5100S Digital Anchor Profile Gauge Surface Profile Tester

  • 1
  • 2

Model Number : SRT-5100S

Range : 0 ~ 800 ɥm/29.5 mils

MOQ : 1 SET

Delivery Time : 3-5 working days after receipt of your payment

Power Supply : 4x1.5V AAA(UM-4)Battery

Payment Terms : T/T,Western Union,Paypal

Principle : Inductance Type

Price : US$472.00 - 535.00/set

Operating : Temperature :0℃ ~ 50℃

Certification : CE

Accuracy : ±5%or±5ɥm,(whichever is the greater)

Supply Ability : 10 Sets/Month

Brand Name : HUATEC

Display : LCD

Place of Origin : China

Resolution : 0.1ɥm/ 1ɥm

Packaging Details : Blue ABS box+Outer carton packaging

Contact Now

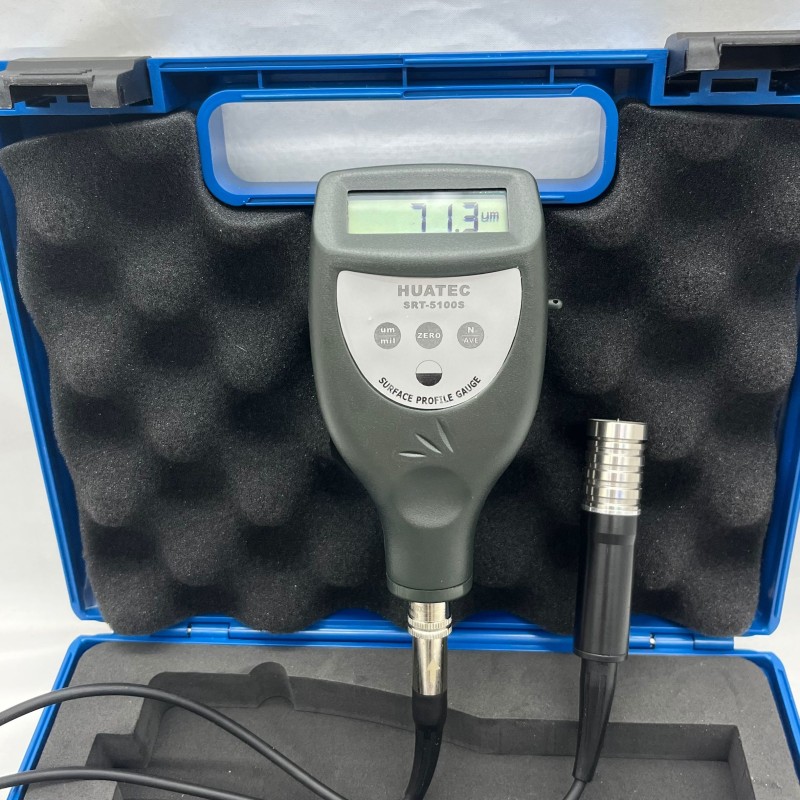

SRT-5100S Digital Anchor Profile Gauge Surface Profile Tester


Application

This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces. It is widely used in field of blast cleaned surface measurement.


Specification

Display LCD
Range 0 ~ 800 ɥm/29.5 mils
Accuracy ±5%or±5ɥm,(whichever is the greater)
Resolution 0.1ɥm/ 1ɥm
0.1mils
Principle Inductance Type
Operating Temperature :0℃ ~ 50℃
Conditions Humidity :< 80% RH
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 126x65x28mm
Weight 280 g

Standard

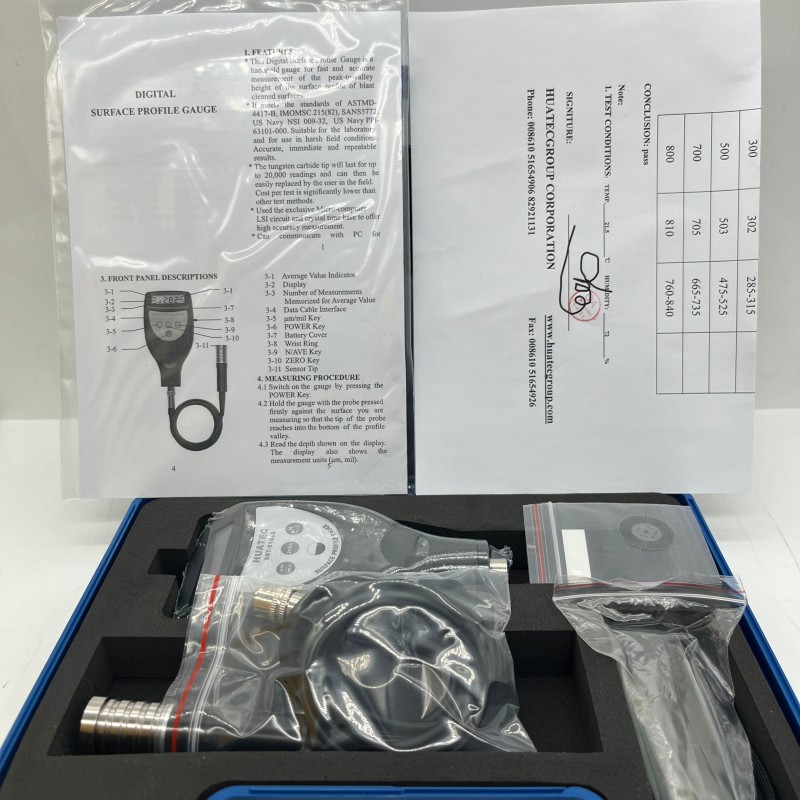

Accessories

 Main Unit
Sensor
Standard Sample Plate
Carrying Case
Operation Manual

Optional

Accessories

 USBCable with Software
Blue tooth Adapter with Software


Feature

* It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial Conversion.
* With average calculation function.
* Separate Probe.
* Use USB data output to connect with PC.
* Provide Blue tooth data output choice.

SRT-5100S Digital Anchor Profile Gauge Surface Profile TesterSRT-5100S Digital Anchor Profile Gauge Surface Profile TesterSRT-5100S Digital Anchor Profile Gauge Surface Profile Tester
